Name: Black Outdoor Directional Antenna Flat Panel RFID 902928 MHz 10dBi 305x305x25
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10816-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 902-928MHz

VSWR : <1.5

Peak Gain : 10dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	902-928MHz
S.W.R.	<1.5
Antenna Gain	10dBi
Polarization	Linear
Horizontal Beamwidth	63-65°
Vertical Beamwidth	51-54°
F/B	>20dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	30530525mm
Radome material	ABS
Weight	1.6Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25

2.2 Total Efficiency & Gain:

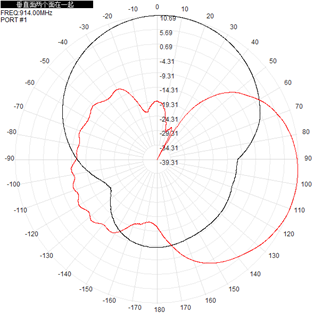

2.3 Radiation Pattern
